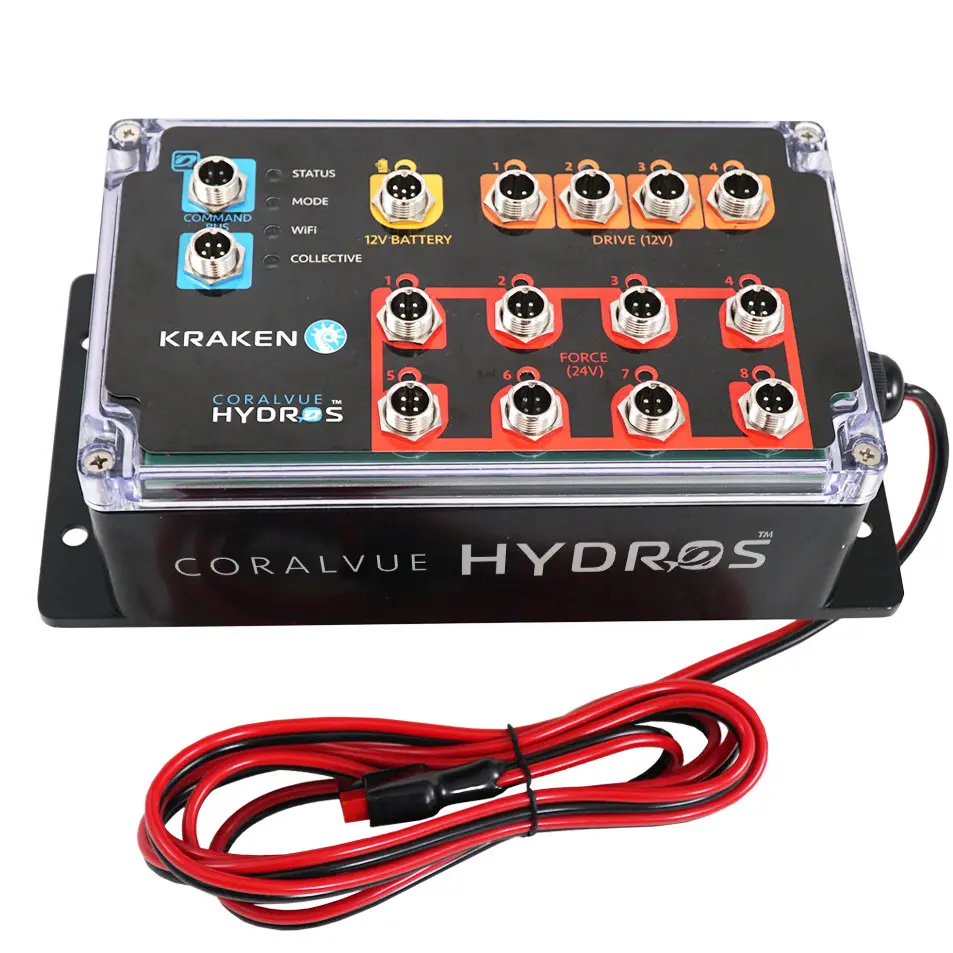

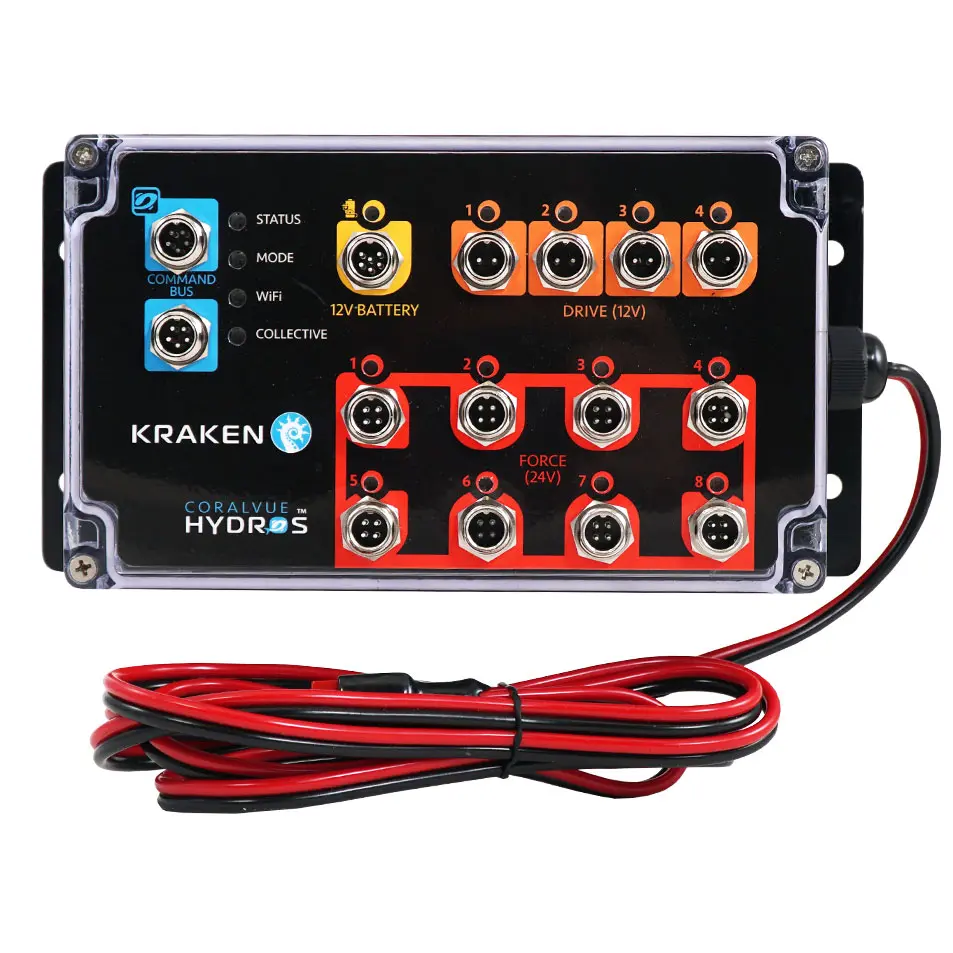

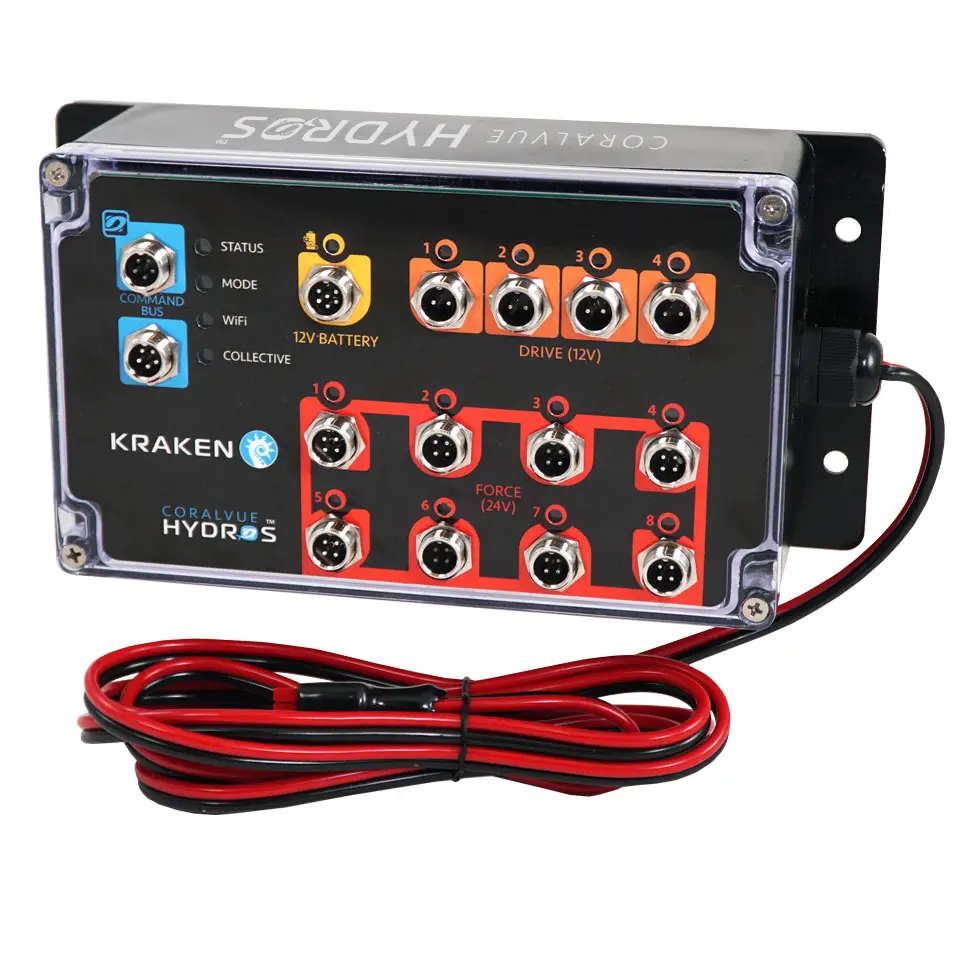

CoralVue – HYDROS Kraken 24V Power Center
Overview

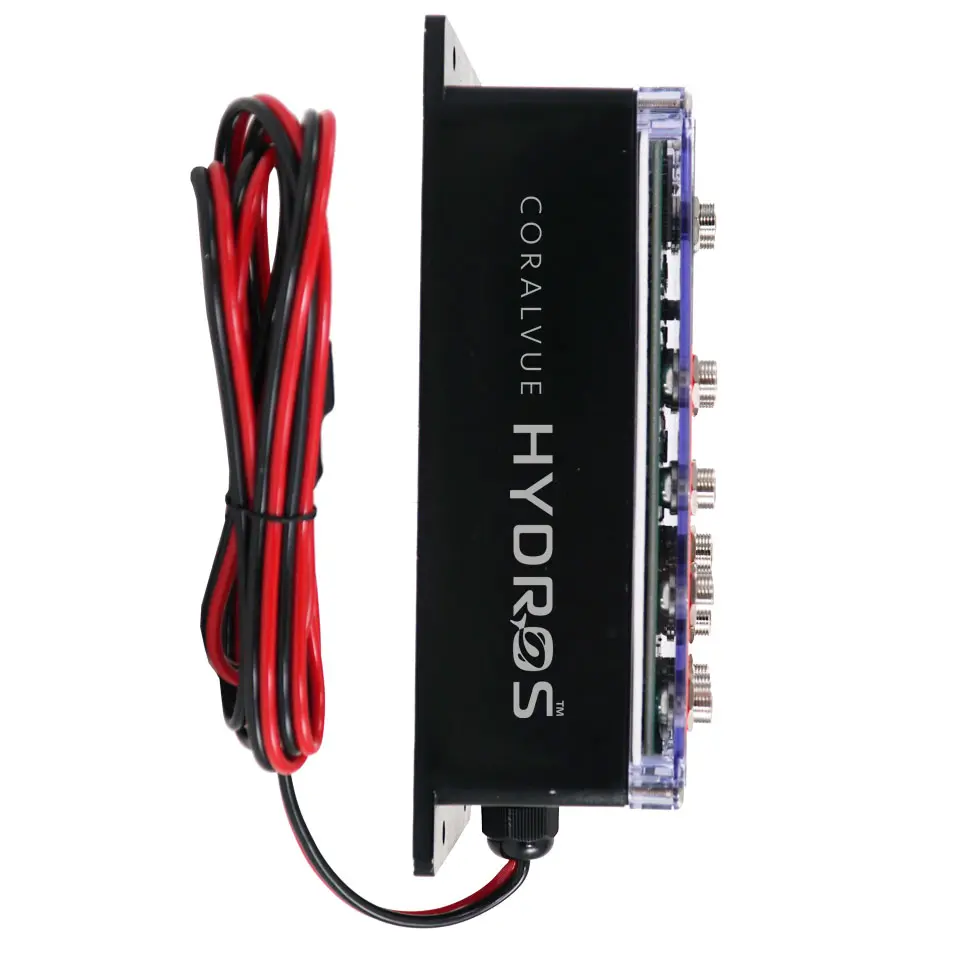

The HYDROS Kraken is a high-capacity, all-in-one aquarium power center engineered to streamline and safeguard your life support equipment. With eight independently controlled 24V Force Ports and four 12V Drive Ports, the Kraken eliminates the clutter of multiple power bricks while offering centralized control, smart automation, and real-time power monitoring.
More than just a power hub, the Kraken is also a full HYDROS controller capable of taking over automation tasks across your HYDROS Collective. Its passive cooling, industrial-grade power supply, and redundant connectivity make it the ideal core for any advanced reef or freshwater system.
Key Features
- Powers up to 20 Amps / 480W of 24V DC equipment
- 8x Force Ports with individual power monitoring (max 8A each)
- 4x Drive Ports (12V DC; 2.5A each, 4A total)
- Includes industrial-grade Mean Well™ Super Brick (ETL/UL design)
- No cooling fans – runs passively & silently
- Control & monitor up to 8 WiFi devices (e.g., feeders, power strips)
- Full HYDROS controller – not just a power bar
- Optical isolation between control & power circuits for fail-safe operation
- Universal power input: 110–220V
- Fully compatible with the HYDROS App (local & cloud control)

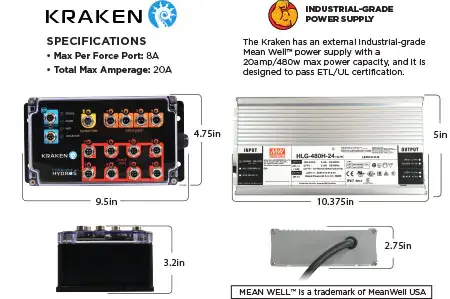

Technical Specifications
- Dimensions: 9.5 x 4.75 x 3.2 in (L x W x H)
- Max Power: 480W / 20A
- Force Port Max: 8A each
- Drive Port Max: 2.5A each (4A total)
- Battery Backup Port: 1 (12V Lead Acid supported; battery not included)
- Command Bus Ports: 2
- WiFi Device Support: Up to 8
Included in the Box
- HYDROS Kraken Controller

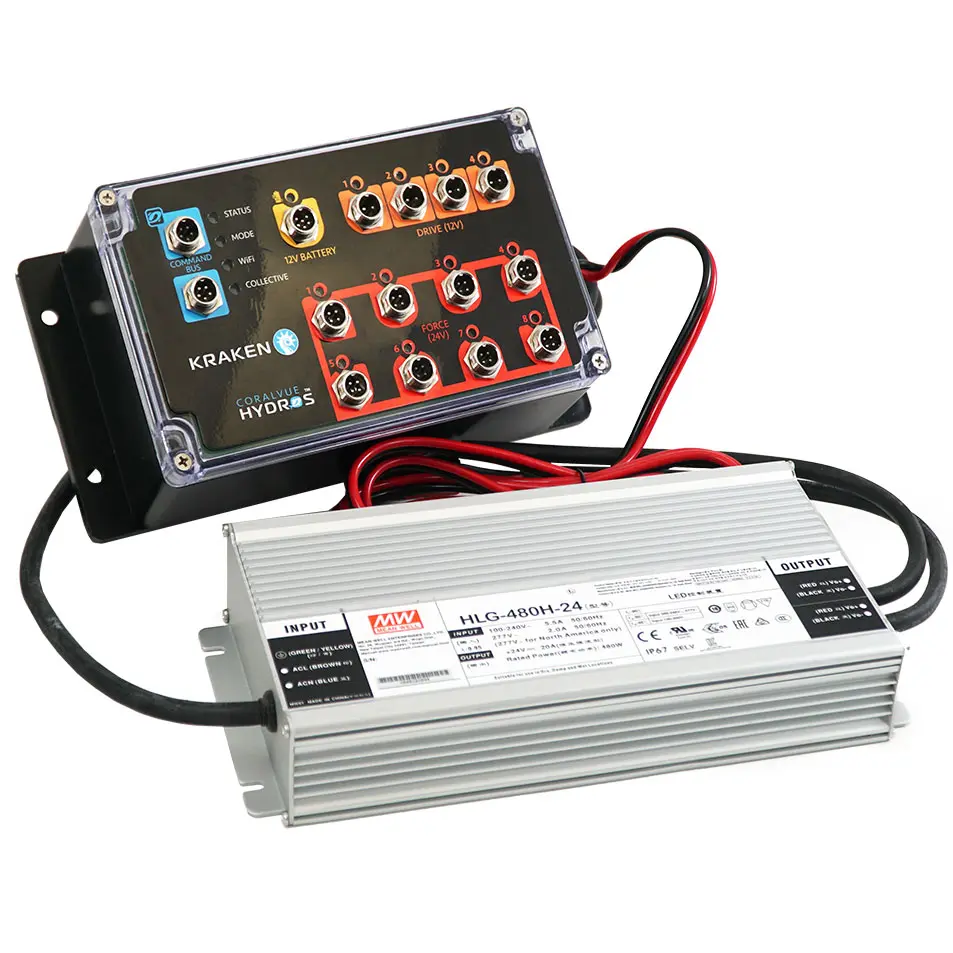

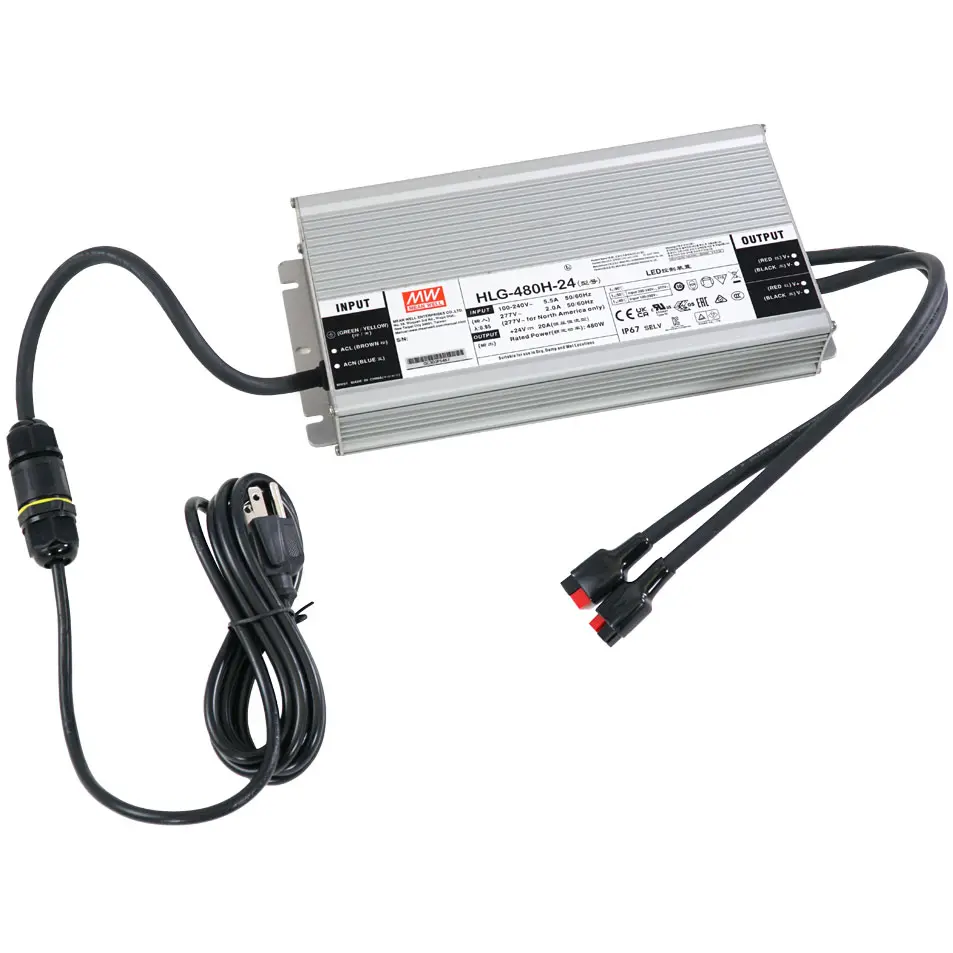

- 24V Mean Well™ Power Supply (Super Brick)
- Battery Backup Cable (battery not included)
Note: Force & Drive Port Adapter Cables are required and sold separately.

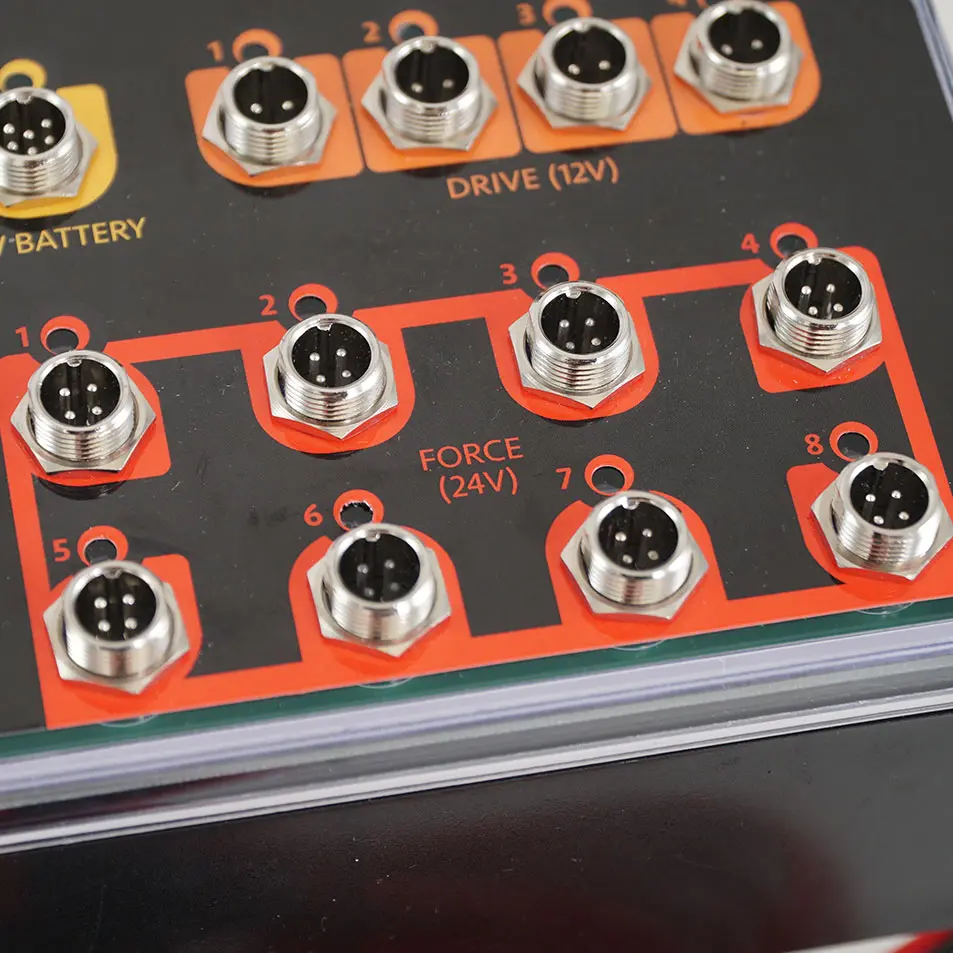

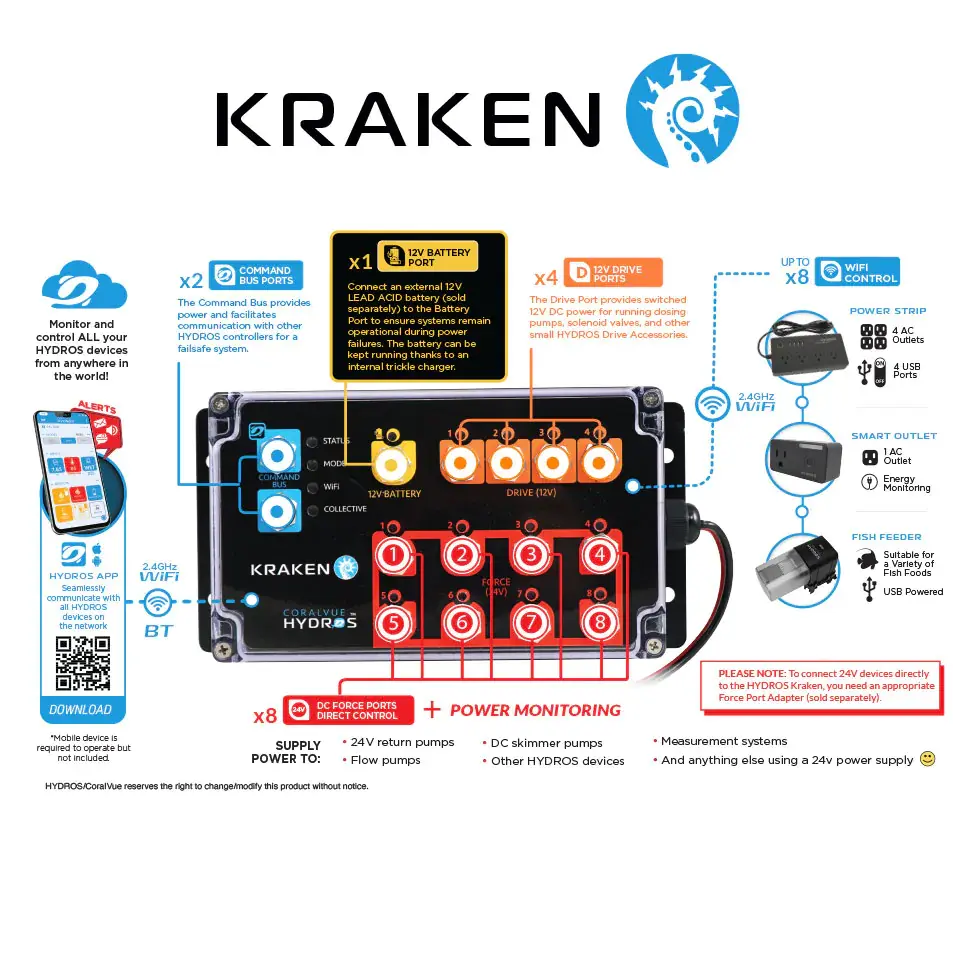

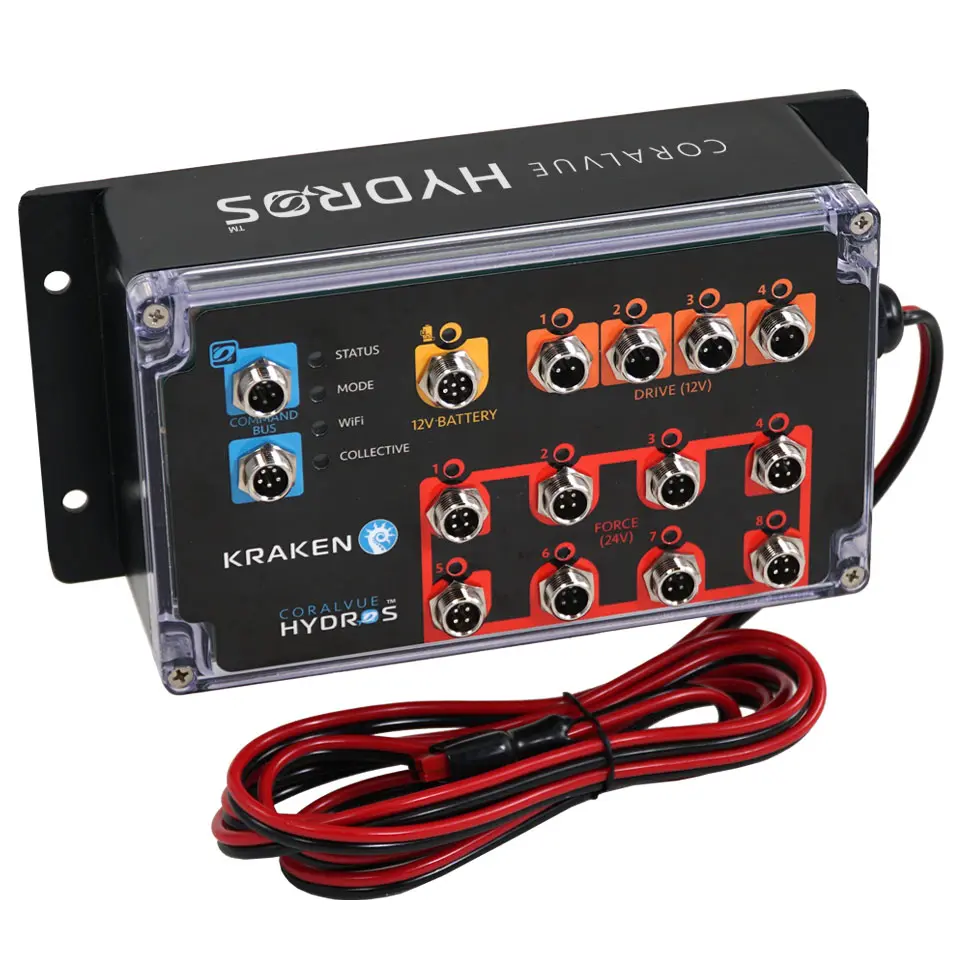

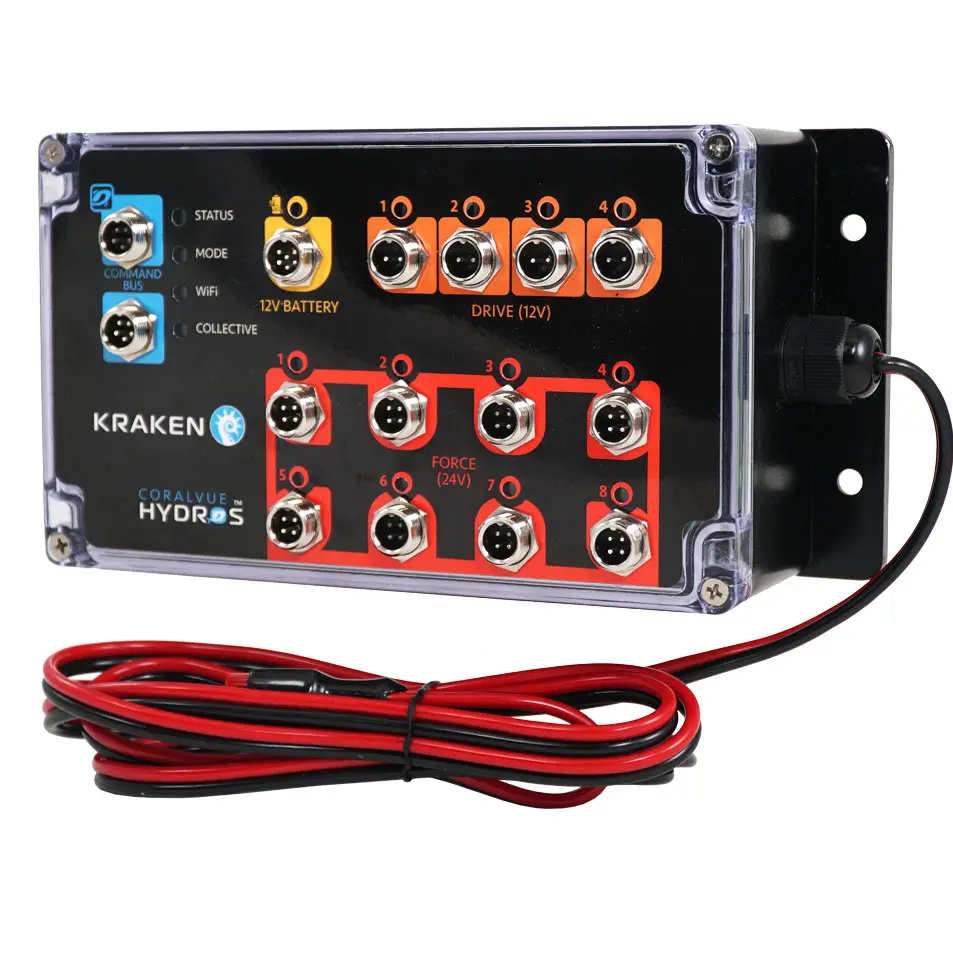

Port Breakdown
Force Ports – 8x (24V DC)
Each Force Port powers DC equipment like:
- Return pumps & flow pumps
- Protein skimmers & controllers
- Small to medium LED lights
- Other HYDROS devices
Each port provides up to 8A and replaces bulky external power bricks.

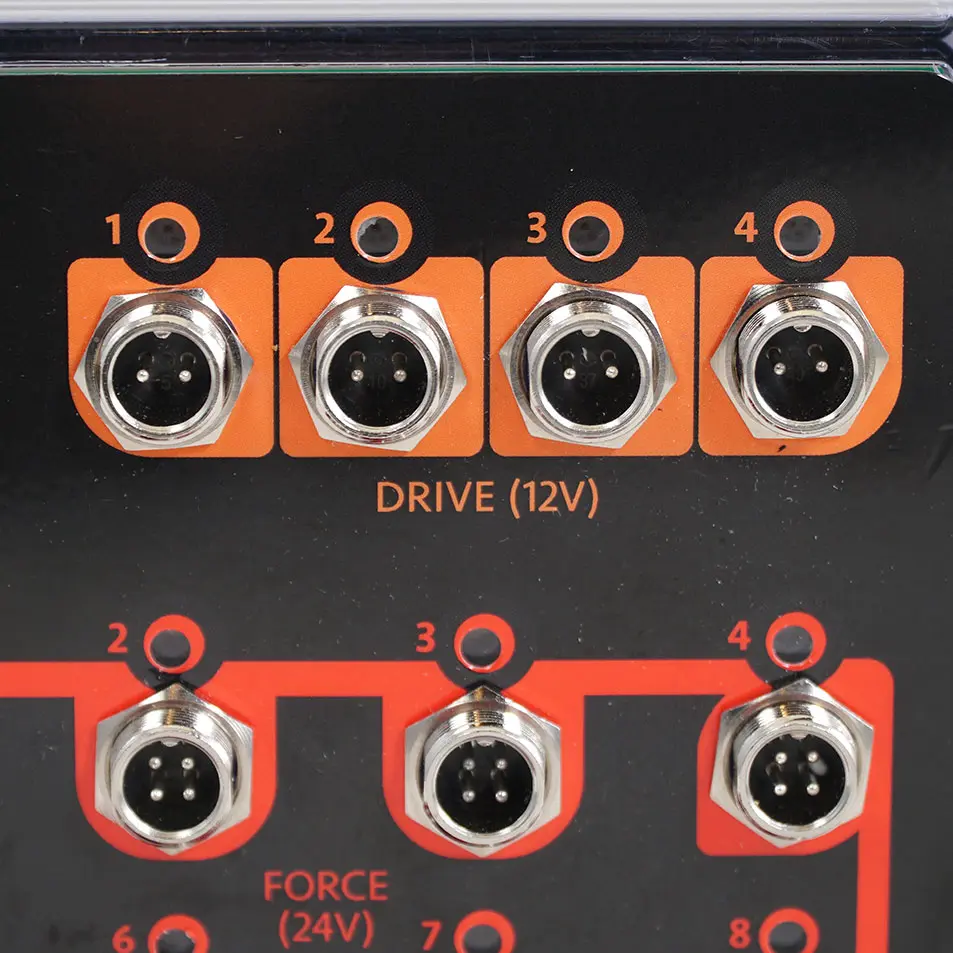

Drive Ports – 4x (12V DC)
Ideal for:
- ATO pumps
- Dosing pumps
- Cooling fans
- Cabinet LED lights
- Solenoids (RO systems)
- Stirrers & valve controllers
Each port supports up to 2.5A, with a total max of 4A across all Drive Ports.
Battery Backup Port
Connect a 12V lead-acid battery to keep your HYDROS Collective running in Low Power Mode during outages. Includes an internal trickle charger and full monitoring of battery status.
Command Bus Ports – 2x
Enables wired redundancy and data/power sharing between multiple HYDROS controllers in your Collective setup.
WiFi Control
Use the HYDROS App to manage:
- Smart Plugs
- 4-Outlet WiFi Power Strips
- Fish feeders
- And more
Create rules, schedules, and safety automations across your entire system.
Warranty
- 1-Year Limited Warranty on housing & controller body
- Dosing heads, rollers, tubing, and bushings are wear parts and not covered
Terms:
- Applies to the original purchaser only
- Excludes misuse, unauthorized repairs, or modification
- CoralVue must be notified in writing within 10 days of discovering a defect
- Warranty covers repair or replacement only – no incidental or consequential damages
