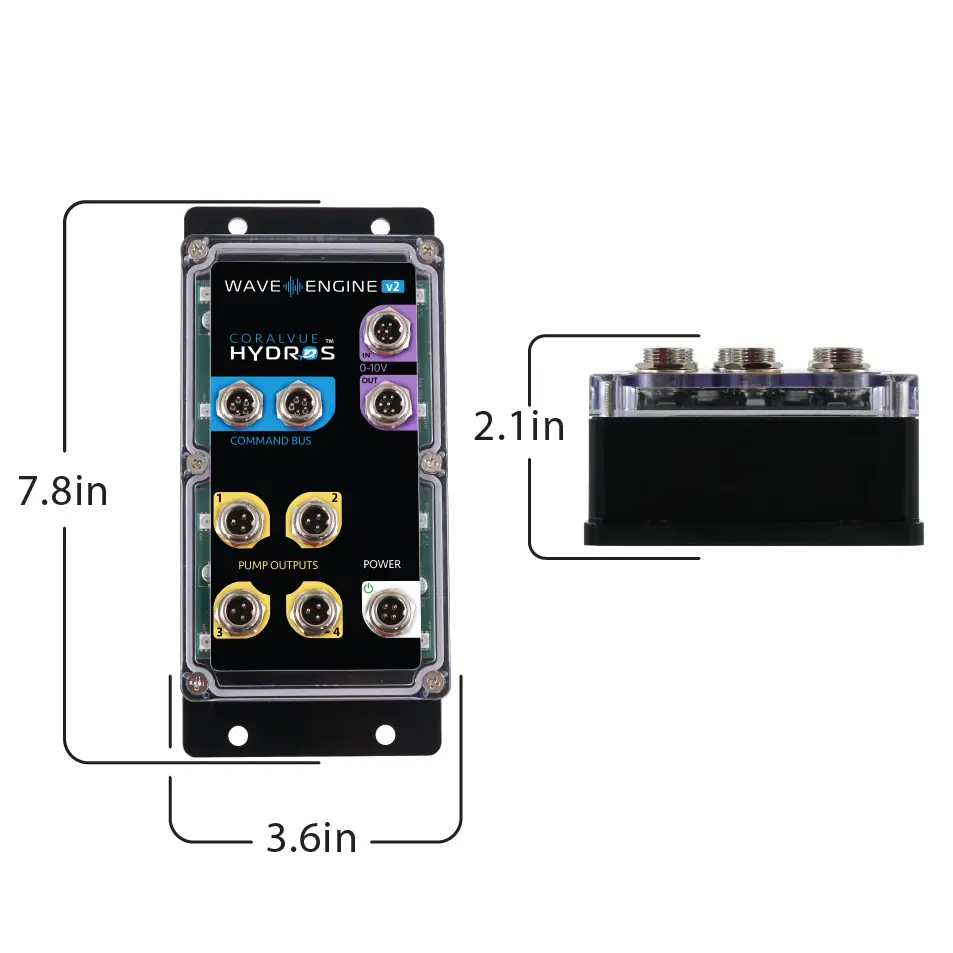

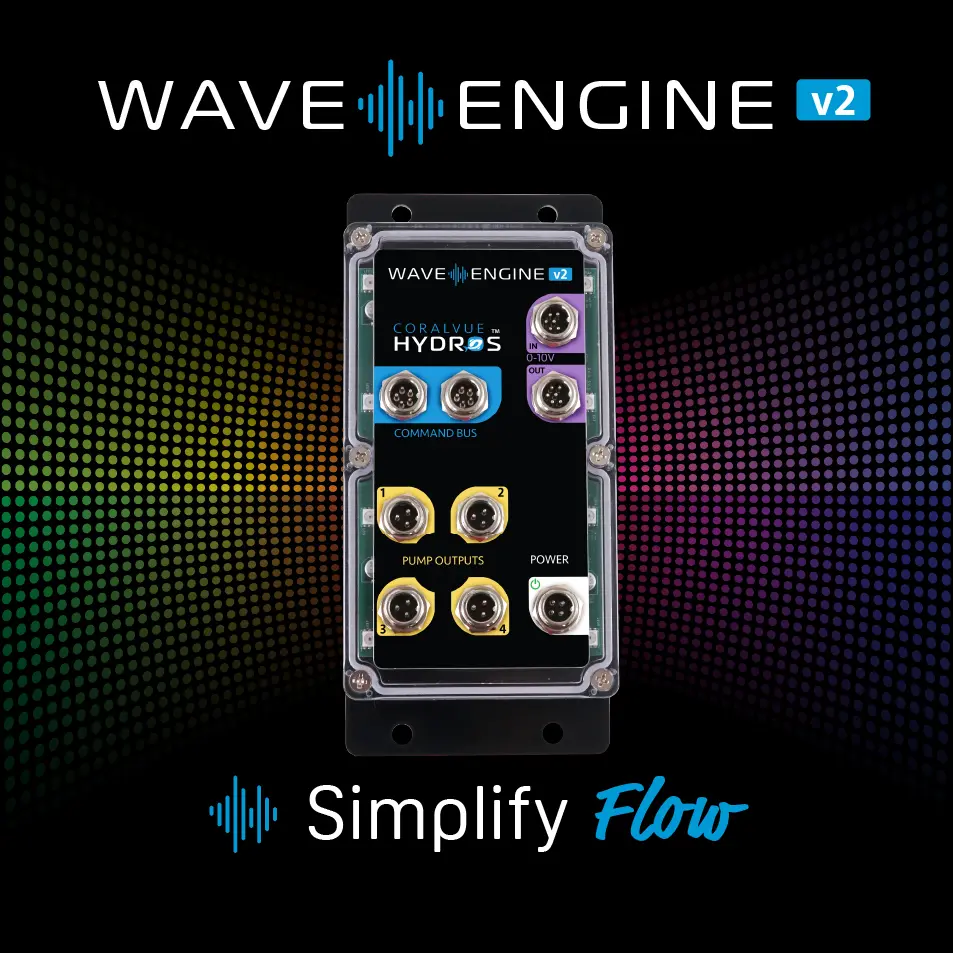

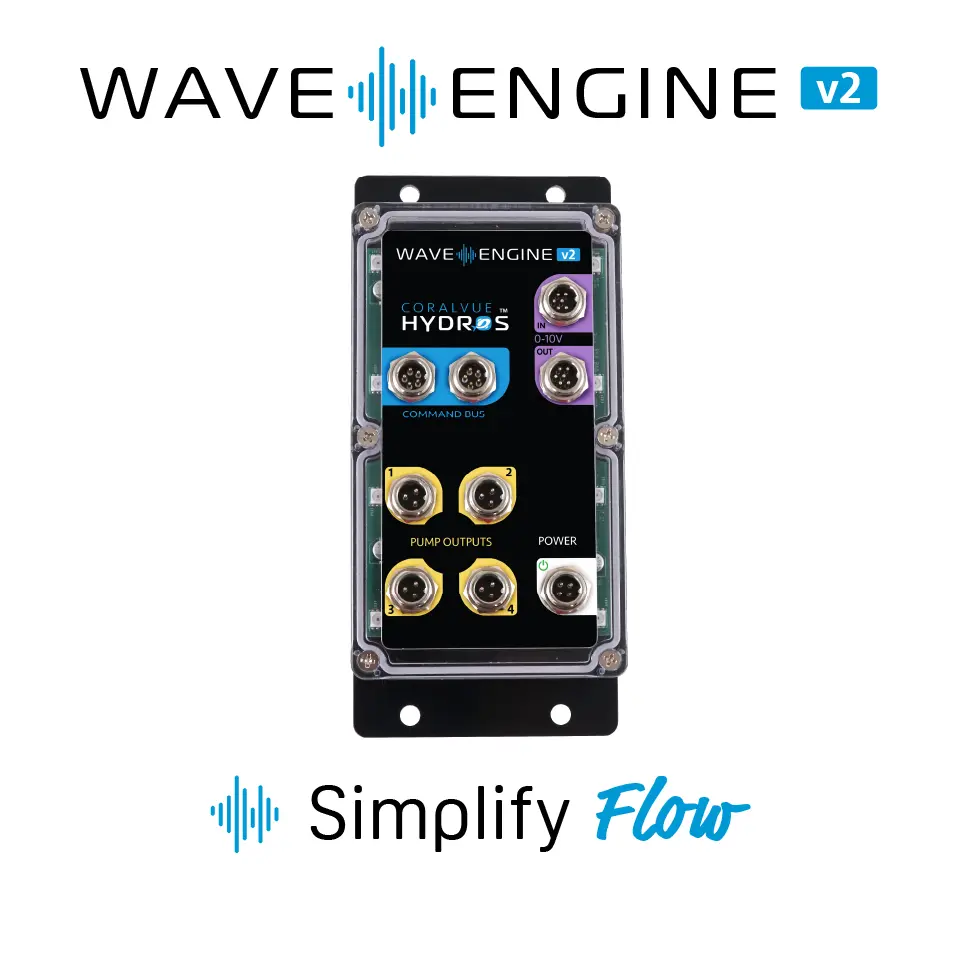

CoralVue – HYDROS WaveEngine v2 Pump Controller
Overview
The HYDROS WaveEngine v2 simplifies aquarium flow management by letting you control, monitor, and power up to four pumps — even across different brands — through a single intelligent platform. Eliminate the clutter of extra controllers, apps, and power bricks while gaining advanced control of your flow system via the intuitive HYDROS App.
WaveEngine v2 supports direct power and communication with compatible pumps or control via 0-10V interfaces, enabling seamless integration of Maxspect, IceCap, Reef Octopus, Tunze, Abyzz, and more.

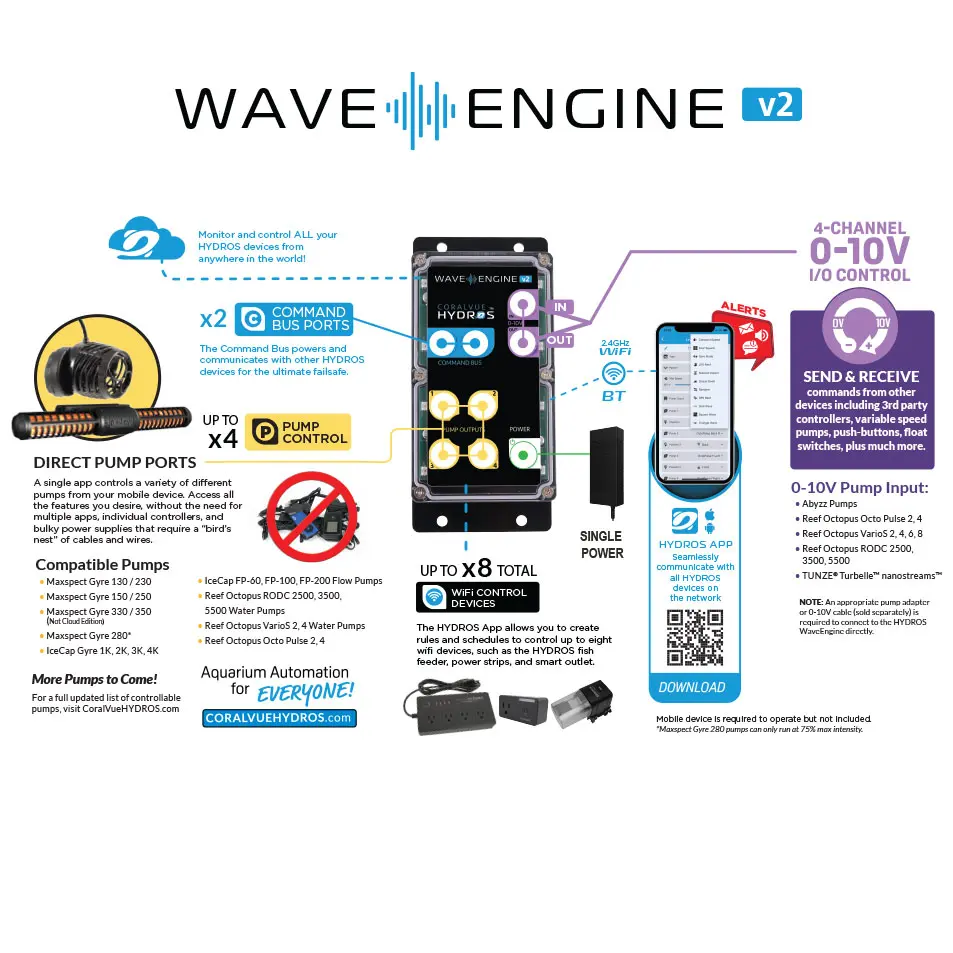

Key Features
- Centralized control of up to 4 DC pumps directly through one system
- Eliminates external pump controllers & power bricks using Direct Drive technology
- Supports mixed-brand pump operation with unified flow programming
- Access native pump modes or customize with advanced wave patterns
- Control up to 8 WiFi devices (lights, powerheads, heaters, etc.)

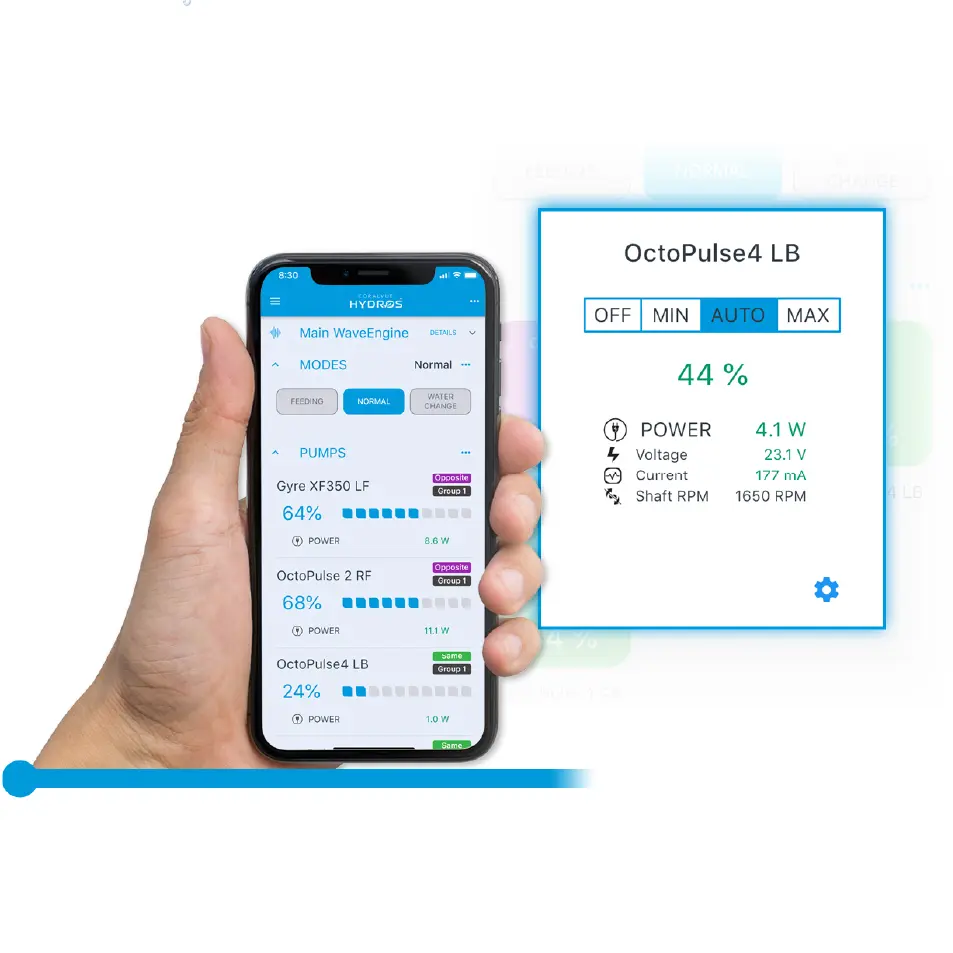

- Monitor RPM, voltage, amps, watts & power consumption in real-time
- Supports Feed, Night, and Water Change modes
- Engineered, assembled & supported in the USA
- IP65-rated for splash & dust resistance
- Full HYDROS Collective compatibility via Command Bus ports
Direct Drive Integration (No Power Brick Needed)
Power and control pumps directly with optional HYDROS Direct Drive Adapters (sold separately).
Compatible Pumps Include:
- Maxspect Gyre XF-130/230/330/350 (280 model runs at 75% max)
- IceCap Gyre 1K, 2K, 3K, 4K
- Reef Octopus OCTO Pulse 2 & 4, VarioS 2 & 4, RODC 2500/3500/5500

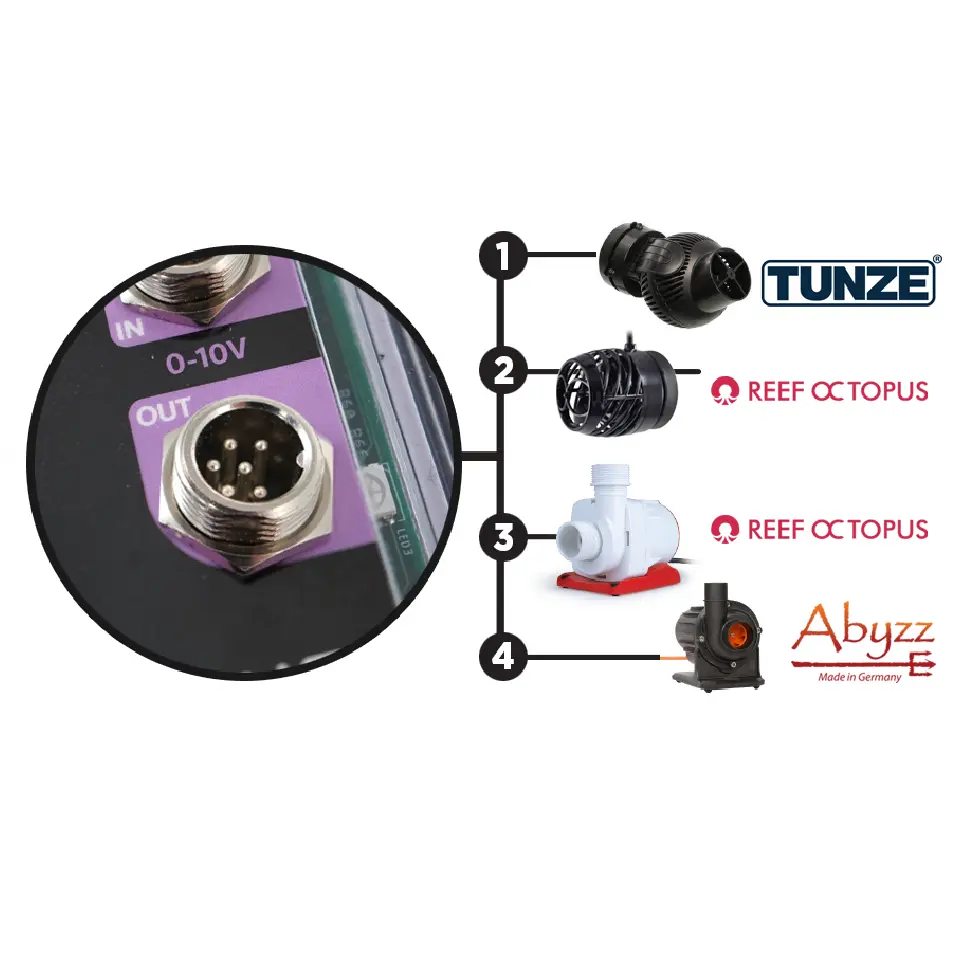

0–10V Control (Third-Party Pumps)
Use the HYDROS 0–10V Quad Adapter (sold separately) to control popular external-controlled pumps.
Compatible with:
- Abyzz
- Tunze Turbelle & Nanostream
- Reef Octopus VarioS, Octo Pulse, RODC series
WiFi Device Control
Just like other HYDROS Controls, WaveEngine v2 can manage up to 8 WiFi devices using:
- HYDROS Smart Plug
-
HYDROS WiFi Power Strip
(Sold separately)

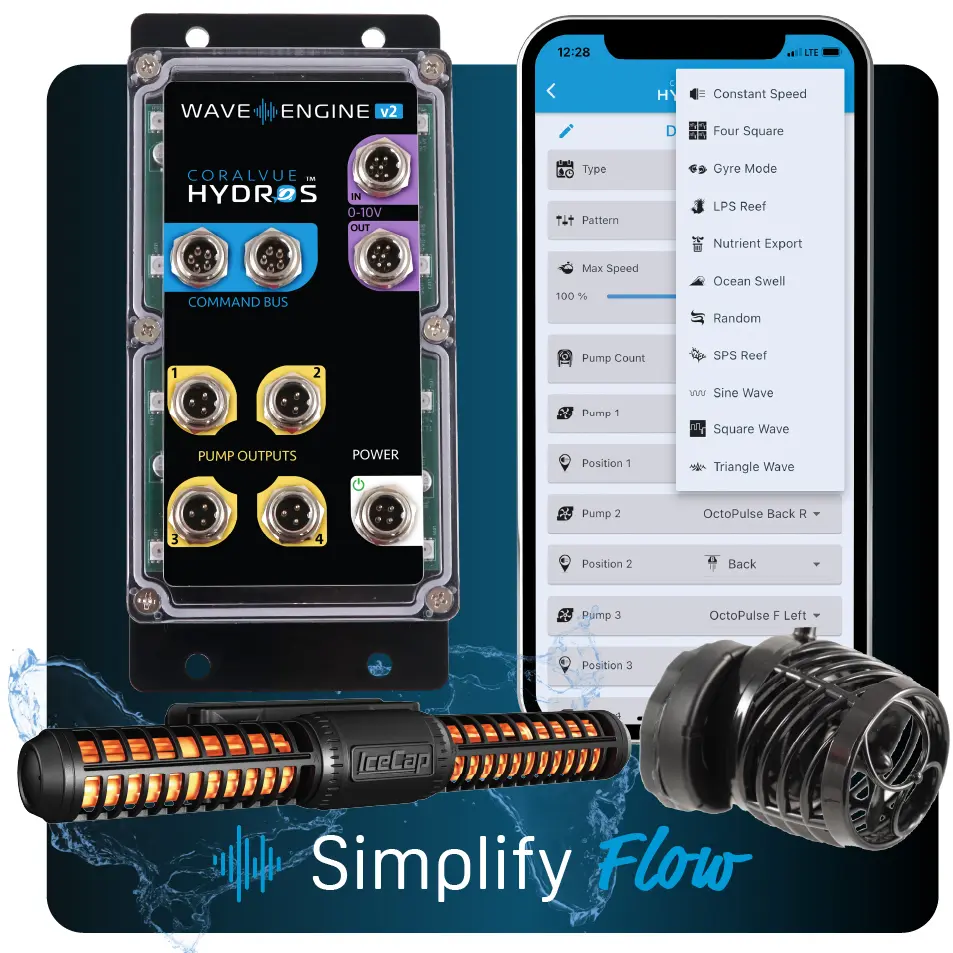

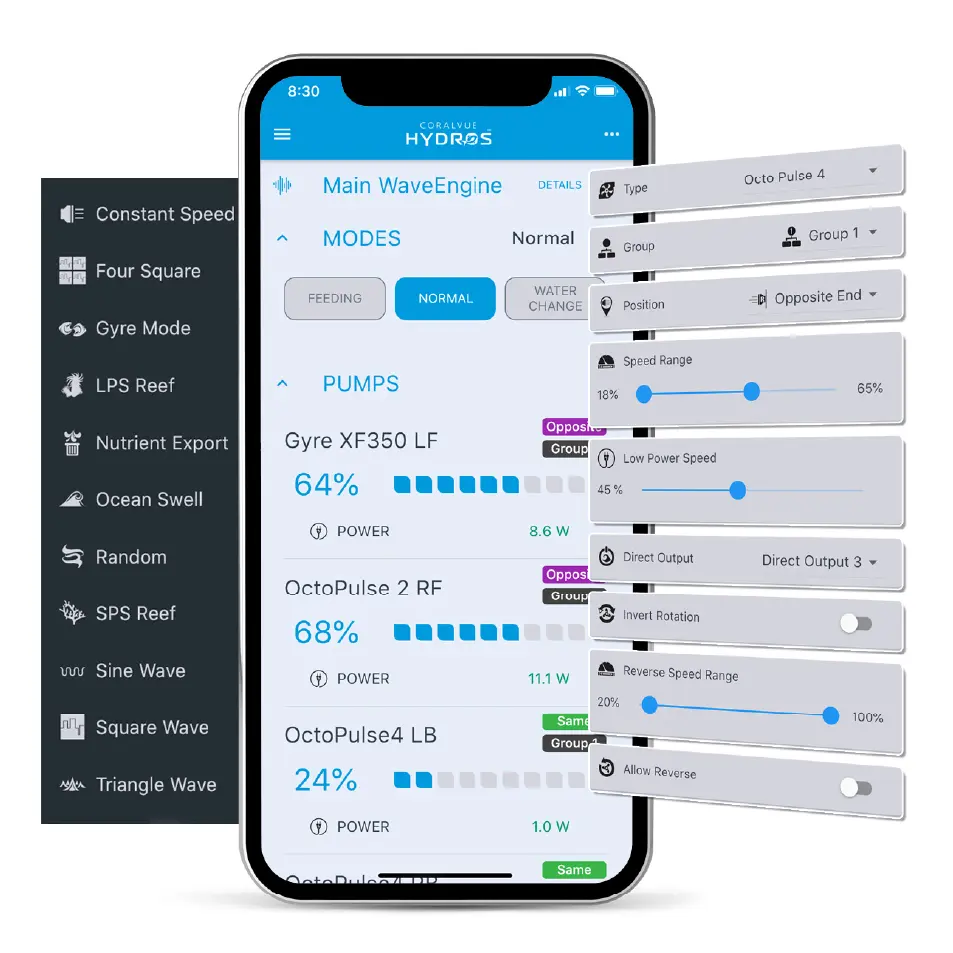

App-Based Flow Management
One app for all brands and pumps — create wave patterns, group configurations, and real-time automations including:
- Presets: Sync, Anti-Sync, Square, Sine, Triangle Waves
- 24-hour custom flow curves with 1/1000s resolution
- Group pumps by zone
- Adjust min/max speed per pump
- Remote access, cloud sync, and alert notifications
HYDROS Collective Compatible
Command Bus Ports allow WaveEngine v2 to communicate with and power other HYDROS Controllers (like Control X10 or XD), eliminating redundant power supplies and syncing automation across your system.

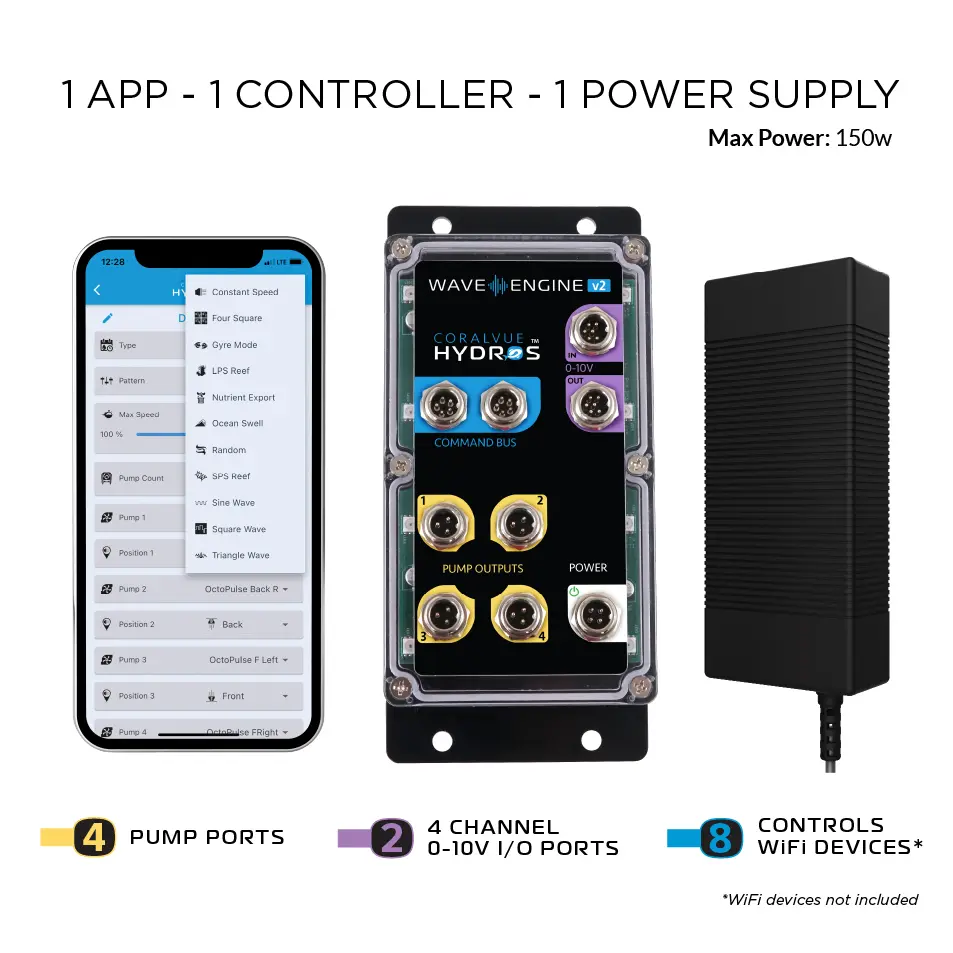

What’s Included
- HYDROS WaveEngine v2 Controller
- Power Supply
Pump adapters, 0–10V cables, and WiFi accessories sold separately.
Warranty
1-Year Limited Warranty
Activated on purchase date. Covers manufacturing defects only.
Terms:
- Applies to original purchaser only
- Not valid if product is misused, altered, or repaired by unauthorized parties
- CoralVue must be notified in writing within 10 days of defect discovery
- Covers repair or replacement only – excludes incidental/consequential damages
