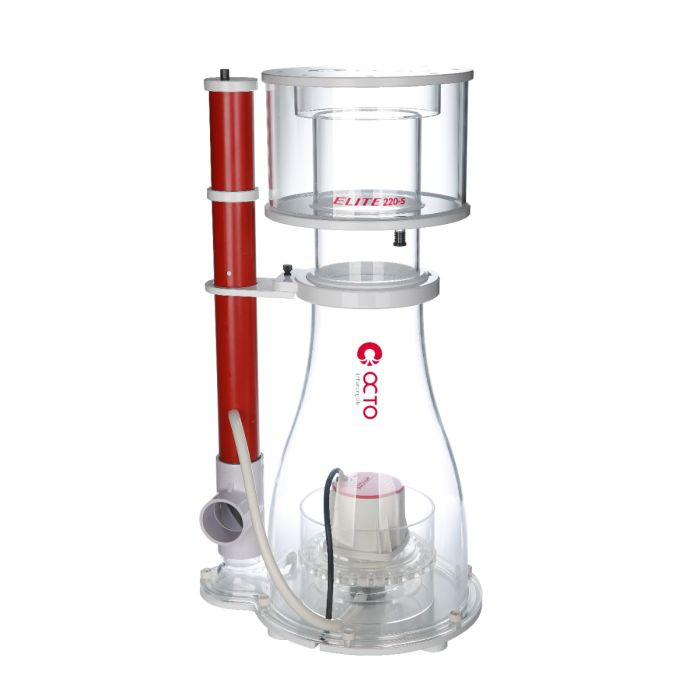

Reef Octopus - Elite 220SSS Space Saver Super Cone Skimmer
Overview
The Reef Octopus Elite 220SSS is a powerful in-sump protein skimmer designed for systems up to 530 gallons, offering exceptional performance in a compact footprint. Featuring a Super Cone body and a controllable VarioS-6S DC pump, this skimmer delivers optimal foam production, quiet operation, and refined control for demanding reef systems.
Built from solid cast acrylic & machined PVC, the Elite 220SSS is fully serviceable and built to last. It’s ideal for aquarists who need powerful nutrient export in tight sump spaces without compromising on quality or adjustability.
Key Features
• Rated for aquariums up to 530 gallons
• Space-saving design with turbulence-reducing Super Cone body
• “Twist & Lift” collection cup for easy removal

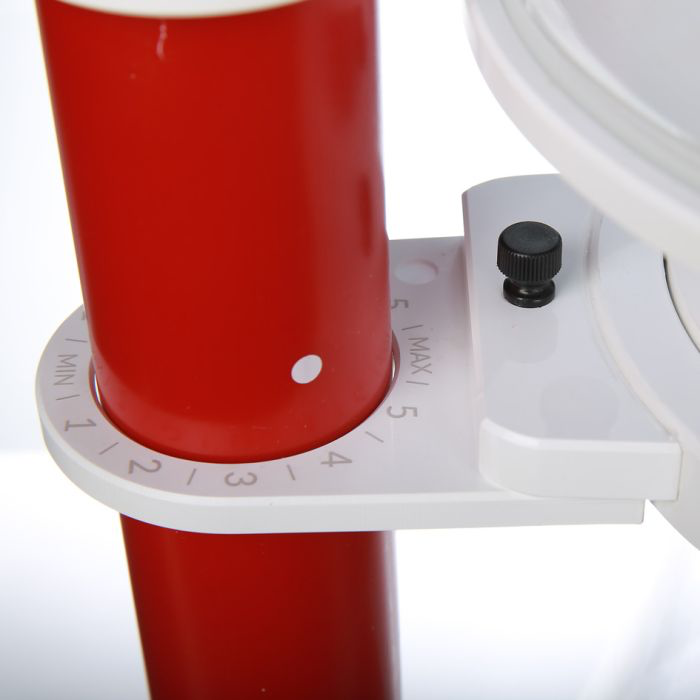

• Vented wedge valve for precise water level tuning
• Ultra-quiet underwater outflow
• Solid cast acrylic & PVC construction
• Disassembles completely for maintenance
• Efficient & safe 36V DC power

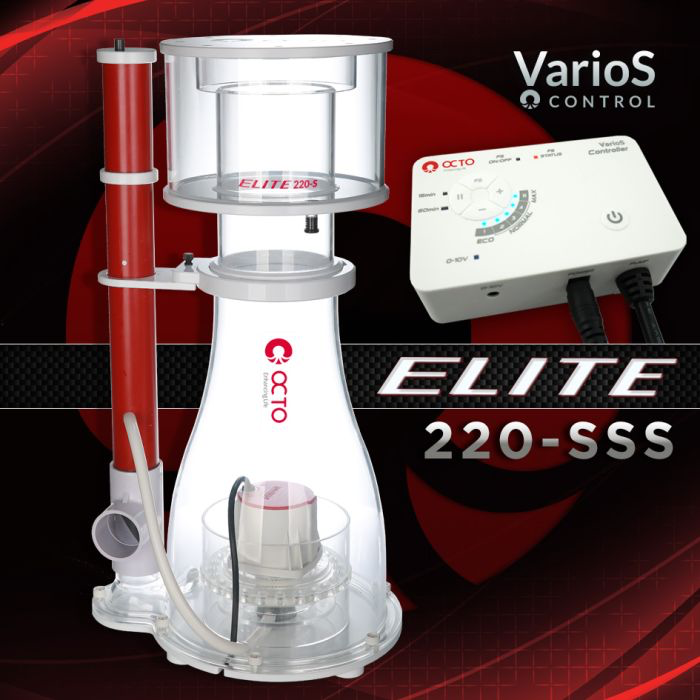

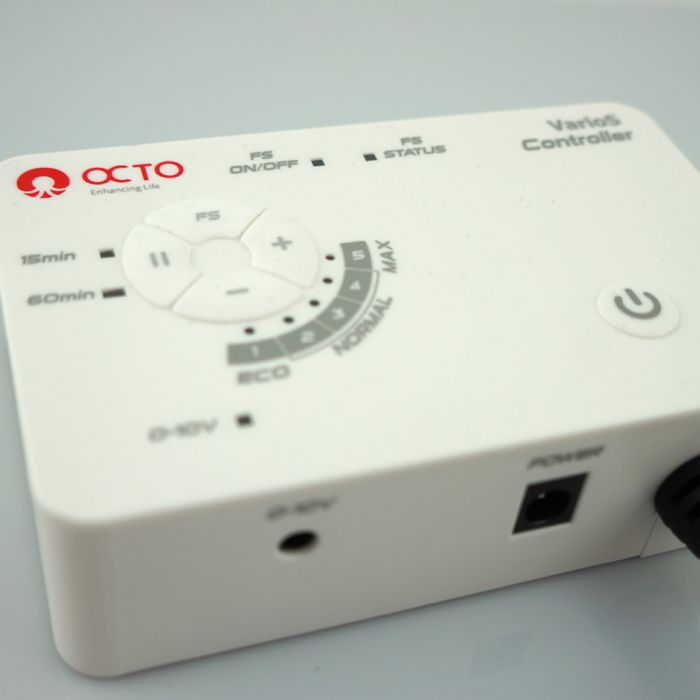

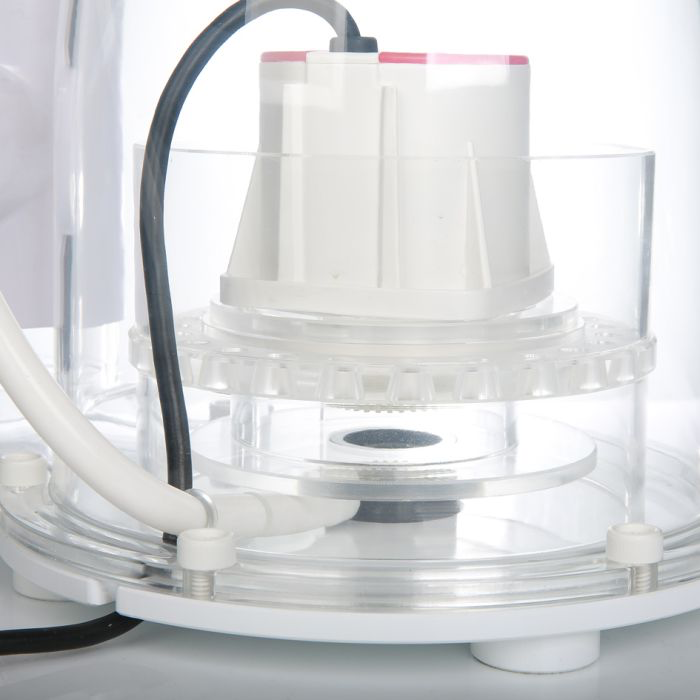

Advanced VarioS-6S Pump & Controller
• 5 controllable speed settings
• Two programmable feed modes (15 & 60 min)
• Float switch connection (switch included)

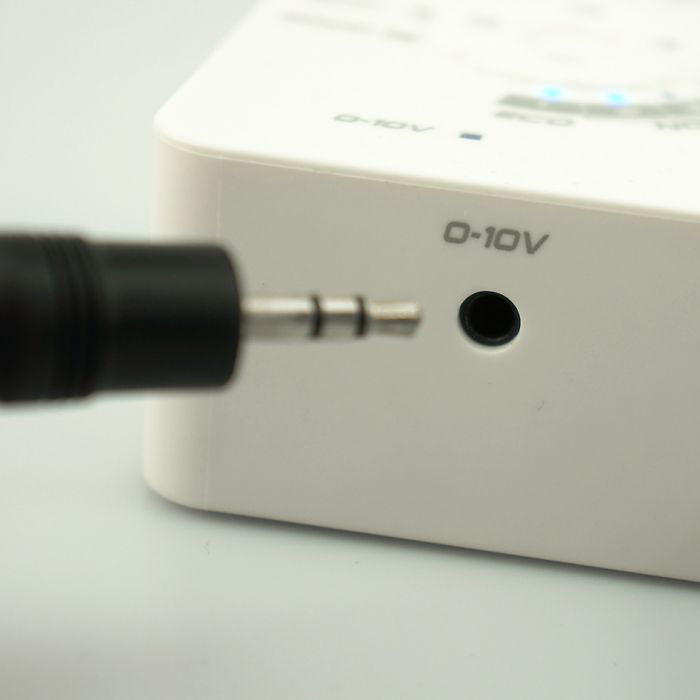

• 0–10V input for Apex or third-party controller integration
• Soft-start feature gradually ramps power over 10 seconds
• Waterproof 3-conductor union for safe, simple installation
• Adjustable volute for flexible outlet orientation (vertical or horizontal)
Technical Specifications
• Super Cone Diameter: 9"
• Neck Diameter: 4.75"
• Footprint: 13.6" L x 11.2" W
• Total Height: 25.2"
• Output Size: 50mm / 1.5"
• Recommended Water Height: 7.5" – 9"
Pump Specs (VarioS-6S)
• Power Consumption: 35 – 70W
• Voltage: 36V
• Air Draw: 1200 – 2400 LPH (42 – 84 SCFH)*
• Water Draw: 528 GPH
*Performance may vary depending on system configuration
Bioload Ratings
• Heavy: up to 300 gal
• Medium: up to 420 gal
• Light: up to 530 gal
Warranty
• 5 years – Pump body/housing
• 3 years – Reef Octopus controller
• 1 year – Skimmer body, power supply, impeller, rotor, gaskets & other components
Warranty is valid for original purchaser only and covers defects in materials and workmanship under normal conditions. Damage caused by misuse, alteration, or improper installation voids the warranty. CoralVue reserves the right to repair or replace at its discretion. Removal, installation, and shipping costs are not covered.
