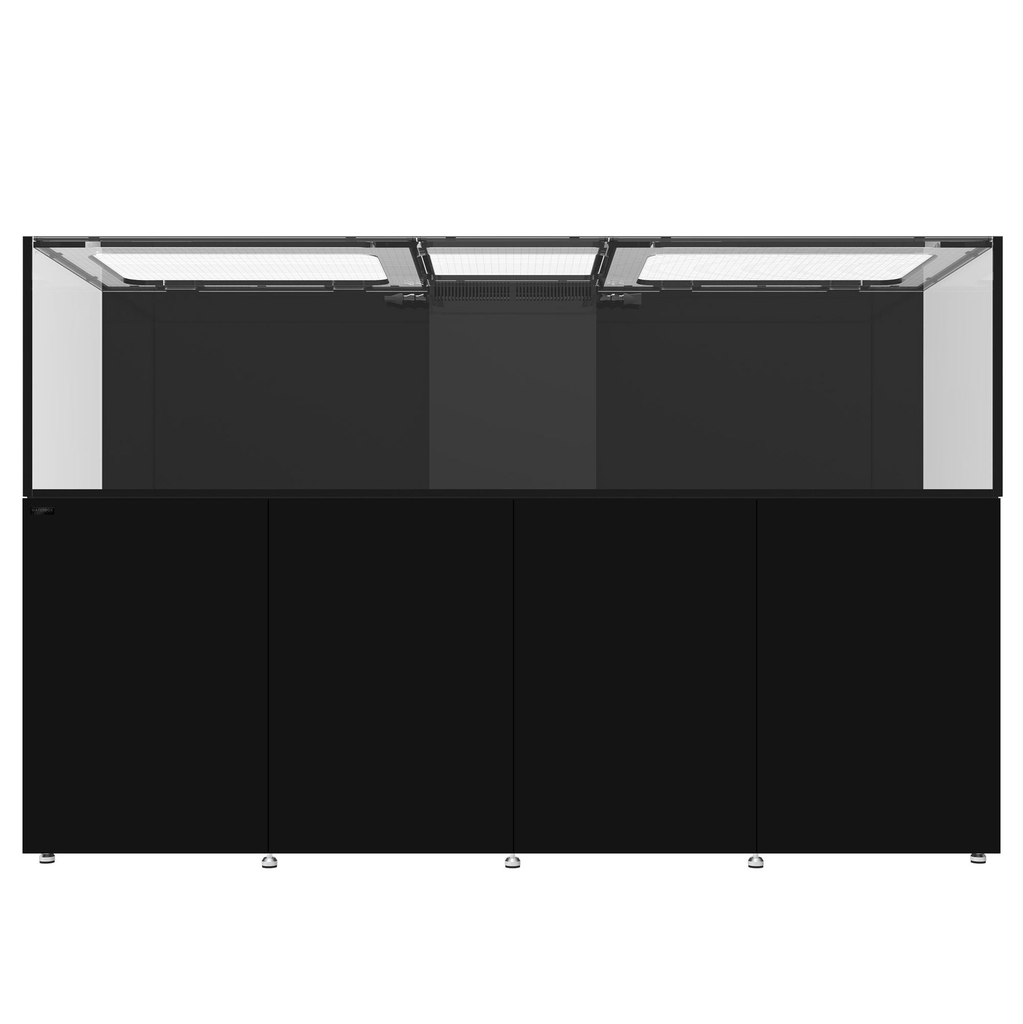

Waterbox Aquariums – REEF LX 380.8
Description
• Display Dimensions (LxWxH): 2448 x 750 x 650 mm (96.4" × 29.5" × 25.6")
• Height with Cabinet: 1577 mm (62.1")
• Display Volume: 1083 L / 286 gal
• Total Volume: 1450 L / 383.1 gal
• Glass Thickness: 19 mm (3/4")
• Included: Aquarium, ALU 9630 Pre-Assembled Aluminum Cabinet, Glass Sump, Quick-Connect Plumbing Kit, Dual 7" Filter Socks, Silencers
A Commercial-Scale Aquarium Built for Serious Reefers
The REEF LX 380.8 is the pinnacle of Waterbox engineering – offering massive volume, unrivaled structural quality, and plug-and-play simplicity. Designed for advanced reefkeepers, coral farmers, or institutions, this system features ultra-clear glass, a fully integrated sump, and a commercial-grade aluminum stand.
Ultra-Clear Display Tank
- 91% light transmittance through ultra-clear low iron glass
- Diamond-beveled viewing panels with 19mm thickness
- CNC-milled 15mm eurobracing for structural reinforcement
- High-strength black silicone for durability and clean edges
- Etched glass overflow weir for ideal surface skimming
- Pre-installed leveling mat to absorb uneven surface pressure
Oversized Sump Filtration System
- Sump Dimensions: 1270 x 610 x 400 mm (50" × 24" × 15.7")
- Sump Volume: 292 L / 77.1 gal
- Filter Socks: 2 x 180mm / 7" mesh with silencers
- Refugium Zones:
- Max: 350 x 518 mm (13.8" × 20.4")
- Min: 250 x 518 mm (9.8" × 20.4")
- Skimmer Chamber Options:
- Without refugium: 801 x 518 mm (31.5" × 20.4")
- With min refugium: 546 x 518 mm (21.5" × 20.4")
- With max refugium: 446 x 518 mm (17.6" × 20.4")
- Pump Chamber: 180 x 518 mm (7.1" × 20.4")
- ATO Reservoir: 350 x 610 x 380 mm (13.8" × 24" × 15") — 76 L / 20 gal
Fully compatible with most major filter roller systems (not included).
Advanced Quick-Connect Plumbing
- Main Drains: 2 x DN25 (32mm / 1.25")
- Emergency Overflow: DN32 (40mm / 1.5")
- Pump Return: DN25 (32mm / 1.25")
- Return Nozzles: 2 x DN20 (25mm / 1")
- Integrated Manifold: Included for reactor hookups
- Check Valve: Prevents sump overflow during power loss
- Tool-Free Installation: No gluing or cutting required

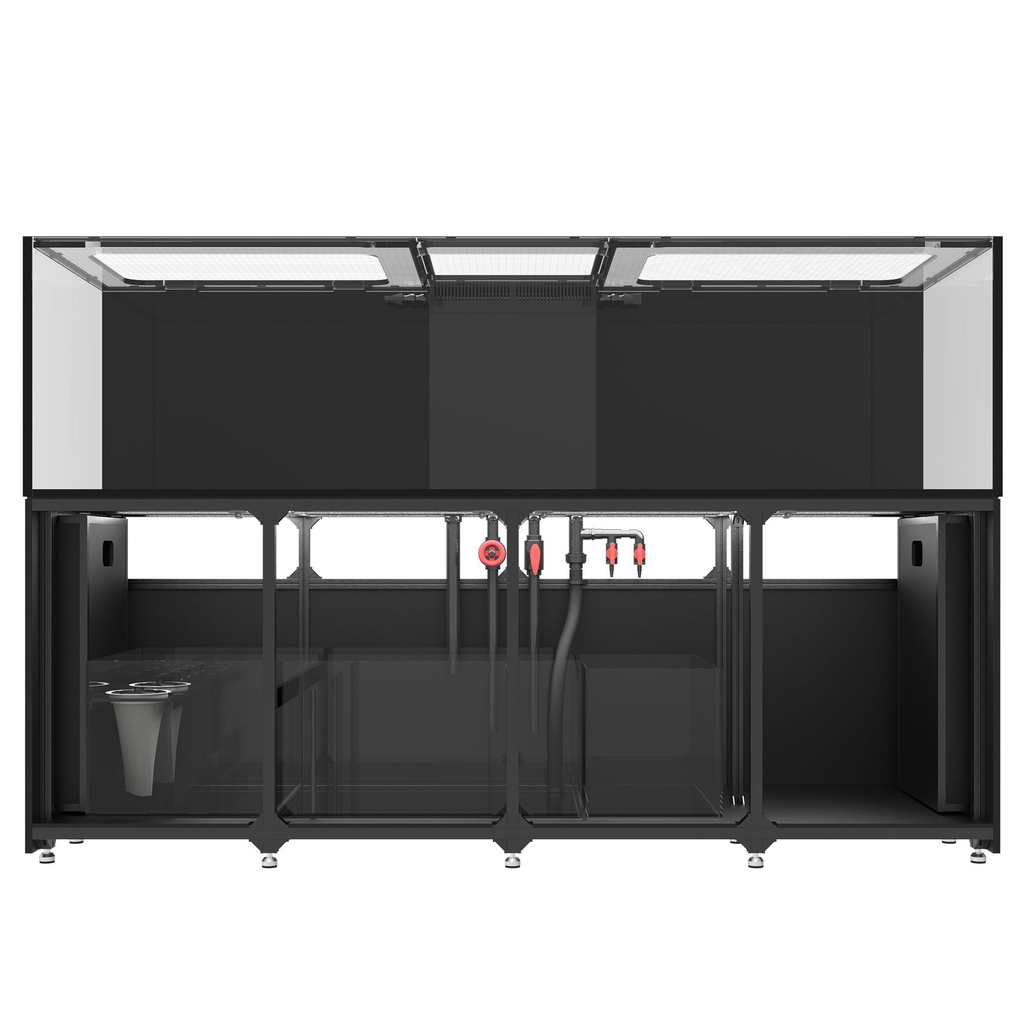

Pre-Assembled Aluminum Cabinet
- Model: ALU 9630
- Dimensions: 2448 x 750 x 927 mm (96.4" × 29.5" × 36.5")
- Sump Compartment (Int.): 1700 x 670 x 785 mm (66.9" × 25.7" × 32.8")
- Electrical Compartment (Int.): 430 x 91 x 746 mm (17" × 3.6" × 29.4")
- Frame: Heavy-duty 30mm anti-corrosion aluminum
- Panels: 18mm PU-coated plywood (doors & sides), 10mm PVC base

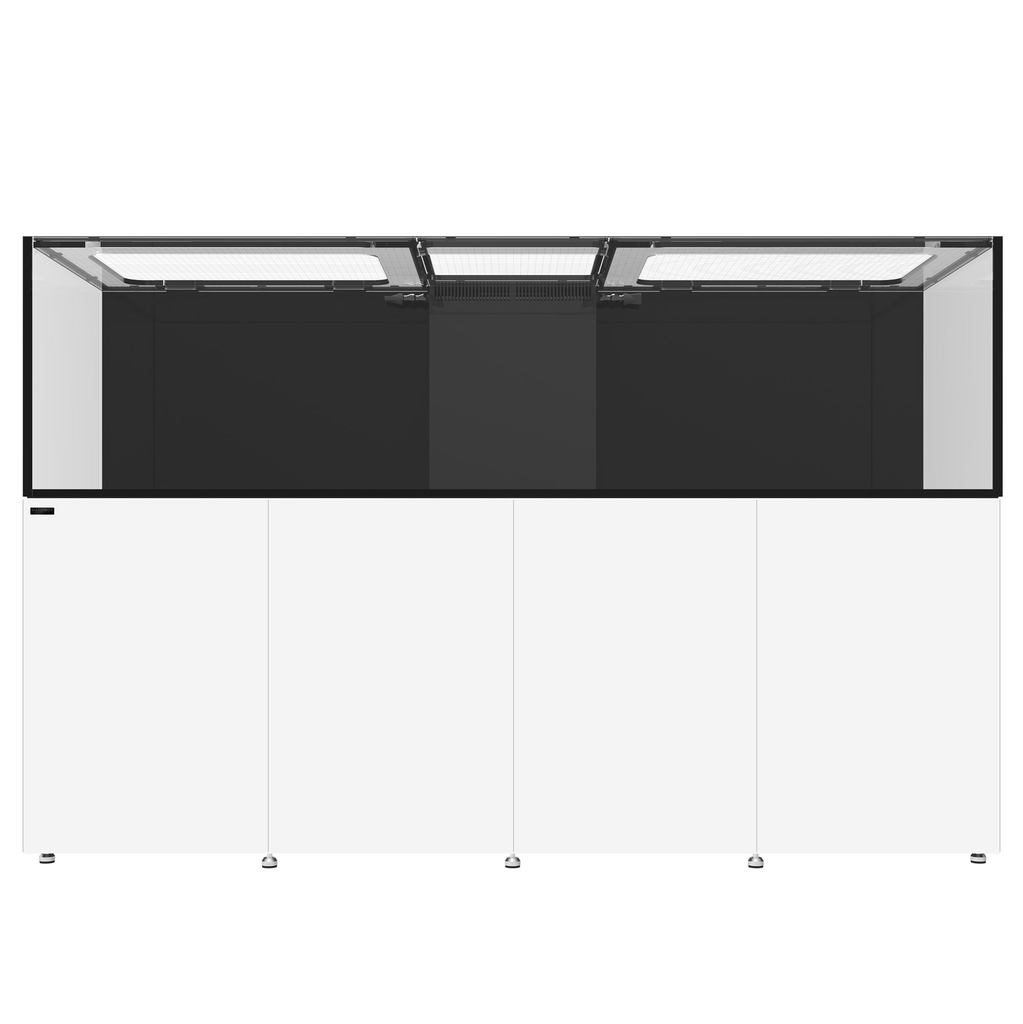

- Color Options: White (WHT) or Black (BLK)
- Leveling Feet: High weight capacity, front & rear adjustable
What’s Included
- 1x REEF LX 380.8 Aquarium
- 1x ALU 9630 Pre-Assembled Cabinet Stand
- 1x Commercial-Grade Glass Sump
- 1x Integrated ATO Reservoir
- 2x 7" Mesh Filter Socks
- 2x Filter Sock Silencers
- 1x Quick-Connect Plumbing Kit
- 1x Dual Manifold
- 1x Overflow Weir & Cover
